Genetic Welfare Problems of Companion Animals

An information resource for prospective pet owners

German Shepherd Dog (Alsatian)

German Shepherd Dog (Alsatian)

Elbow Dysplasia (Ununited Anconeal Process)

Related terms: Disunited anconeal process

Outline: In this condition, a protuberance of the ulna bone – the anconeal process - that forms part of the elbow joint, and which should during development fuse to the ulna, fails to do so and develops separately. This results in an ununited anconeal process (UAP), a condition that is most commonly seen in dog breeds of a large body size, including the German Shepherd dog in which the prevalence appears to be in the order of 12-21% (which would suggest about 60,000 dogs of this breed with the disease in the UK). UAP leads to arthritis of the elbow joint which, unless successfully treated (which is difficult) is likely to cause lifelong pain and discomfort, which may be mild or more severe.


Summary of Information

(for more information click on the links below)

1. Brief description

An ununited anconeal process (UAP) is characterised by disease of a part of the ulna bone at the elbow joint. This process (protruberance) of the ulna bone fails to form properly and, because of this, the function of the elbow is affected and osteoarthritis develops.

Dogs with UAP develop osteoarthritis (degenerative joint disease) of the elbow, which causes pain. The disease is often present by 5-9 months of age but can show later. Affected dogs may be treated with rest and pain-killers, and treatment may need to be life-long. Various surgical procedures have been recommended to treat or alleviate the condition but there is no consensus as to which is best. Some procedures require major intervention, eg removal of sections of bone (Burton and Owen 2008a).

2. Intensity of welfare impact

UAP leads to pain and disability associated with the osteoarthritis of the elbow joint. This can be mild to severe.

3. Duration of welfare impact

UAP leads to pain and disability associated with the osteoarthritis of the elbow joint. This can be mild to severe.

4. Number of animals affected

Various reports suggest that the prevalence may be around 12- 21% in GSDs (Wind & Packard 1986, OFA 2006, Kirberger & Stander 2007, Coopman et al 2008). From data on estimates of total dog population in the UK and on the percentage of all micro-chip registered dogs that are GSDs (Lucy Asher 2011, personal communication), we estimate that the UK population size of this breed may be around 400,000. If the prevalence is around 15% (above), then it is possible that there are some 60,000 of this breed of dog with the disease in the UK.

5.Diagnosis

The disease is likely to be suspected in dogs showing signs of forelimb lameness and can be confirmed, and its nature, extent and severity determined by examinations including x-rays (van Ryssen & van Bree 1997), CT and MRI scans and exploratory surgery – often using an arthroscope.

6. Genetics

The genes involved have not been determined.

7.  How do you know if an animal is a carrier or likely to become affected?

Affected dogs should not be used for breeding. Affected puppies can be born to unaffected parents (Hazelwinkel & Nap 2009). Determining carriers - those which carry and may pass on the gene(s) but which do not show signs of the disease themselves - is not currently possible.

8. Methods and prospects for elimination of the problem

A voluntary scheme to grade the elbows of dogs susceptible to elbow dysplasia has been in operation in the UK since 1998 although it has been suggested that breeder uptake has been relatively low (Sampson 2006). For this scheme, elbows are scored once for the condition when the dog is over one year old.

As with other complex, multi-gene diseases that are influenced also by environmental factors, efforts to reduce the prevalence of UAP are complicated by the lack of information about the underlying genetics. One approach is to breed from dogs that have a better breeding value (see below) than is average for the breed (Sampson 2006). Breeding values take account of both the individual being evaluated and its relatives (Malm et al 2008). Out-breeding GSDs with breeds known to have much lower prevalences of UAP, and elbow dysplasia (ED) in general, is likely to result in fewer dogs being born with a lifetime of painful joint problems before them.


For further details about this condition, please click on the following:
(these link to items down this page)


1. Clinical and pathological effects

Elbow dysplasia (ED) is a general term that encompasses five distinct anatomical problems that tend to result in malformation of the elbow joint, and that lead to early-onset osteoarthritis.

Ununited anconeal process (UAP) is one of these problems, and is the main focus here, but some of the other four conditions outlined below are referred to in the descriptions (below) about how UAP may develop. These conditions are:

Fragmented medial coronoid process (FMCP): The medial coronoid process is a piece of bone that should form part of the top of the ulna and of the elbow joint. In FMCP this fails, during development, to connect to the ulna.

Osteochondrosis dissecans (OCD): In OCD an area of joint cartilage develops abnormally or becomes damaged leading to thickening, cracking and fragmentation of the cartilage.

Elbow incongruity (IC): Dogs with IC have malformed articular surfaces of the three bones that make up the elbow and because of this they do not fit together normally. It can affect the weight-bearing surfaces between the humerus and the radius and ulna and also the way in which the upper part of the ulna fits inside the lower end of the humerus (Schwarz 2000).

Ununited medial epicondyle (UME): This is an uncommon condition in which the medial epicondyle, a part of the humerus, fails to unite with the humerus during development.

The elbow is a complex joint of three bones; the humerus (upper bone of the foreleg/arm bone), the ulna and the radius (lower foreleg/arm bones). At their upper ends, the radius and part of the ulna form a flattened surface that bears the load imposed by the humerus. The anconeal process (protruberance) is normally part of the end of the ulna. Its main function is not weight bearing, rather it helps to stabilize the elbow joint, particularly when the leg is extended. The anconeal process articulates with the caudal (towards the tail of the dog) surface of the humerus (the back of the elbow joint) and when the leg is extended (straightened) it fits into a hole at the lower end of the humerus called the humeral fossa.

Elbow figure 1

Figure 1. The three bones of the elbow joint separated and in normal alignment. In a healthy canine elbow joint the ulna and radius form a flat surface for articulation with the humerus. (Image property of Phil Witte, to whom we are grateful for permission to reproduce it here).

Elbow figure 2

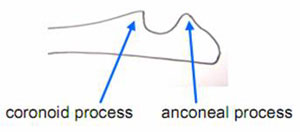

Figure 2. A diagram of the upper end of the ulna illustrating the locations of the coronoid and anconeal processes. (Image property of Phil Witte, to whom we are grateful for permission to reproduce it here).

In most dogs the anconeal process grows as part of the ulna and as such there is no possibility of it not “uniting”. But in breeds with large body size it is normal for the anconeal process to start as a separate small bone at birth, which, during development, should fuse on to the ulna.  This usually occurs by 20 weeks of age. In UAP this fails to happen. The cause of this is unclear but one possibility is that it is a consequence of the radius growing disproportionately longer than the ulna such that the elbow joint is malformed and the anconeal process experiences abnormal pressures that cause it to be pushed away from the ulna, thus preventing it from fusing (uniting). UAP therefore only becomes apparent in dogs aged over 20 weeks (Schwarz 2000).

Elbow figure 3

Figure 3. In larger dog breeds, the anconeal process forms separately. It should fuse with the ulna during development. If this process fails, the result is an Ununited Anconeal Process (UAP).

Dogs with UAP develop osteoarthritis (degenerative joint disease) of the elbow. In osteoarthritis there are progressive changes to the cartilage of the affected joint, varying amounts of inflammation and ongoing damage to other joint structures - the joint capsule, the synovial fluid of the joint and the surrounding bone. These changes are often present by 4-6 months of age and lead to clinical signs later. Typical signs include: stiffness after rest, lameness (which can be worse after exercise) and reduced mobility of the joint, with the leg tending to be held twisted outwards (abducted and suppinated). Such signs are indistinguishable from those shown in other forms of elbow dysplasia and imaging of the joint is usually needed to make a definitive diagnosis (Schwarz 2000).

Elbow figure 4

Figure 4a                                                                               Figure 4b

Figures 4a and 4b. Osteoarthritic changes to the shape and structure of the elbow joint. The shaded areas on figure 4a (extended elbow) and 4b (flexed elbow) represent the changes to bone and cartilage as a result of UAP and other forms of elbow dysplasia. (Images property of the British Veterinary Association/ Kennel Club Elbow Dysplasia Scheme. We are grateful to the BVA for permission to reproduce them here).

Meyer-Lindenberg et al (2006) found that at least 13% of GSDs with UAP also had fragmented medial coronoid process (FMCP,see above)..

UAP is seen more commonly in males than females and the problem is often bilateral (Schwarz 2000, Burton & Owen 2008a, Janutta et al 2006). This male bias may be associated with the greater weight of males (Hazelwinkel 2009).

Affected dogs may be treated with rest and pain-killers, and often treatment needs to be lifelong. Various surgical procedures have been recommended but there is no clear consensus as to which is best. Some of these procedures involve major surgery, including removing whole sections of the ulna in order to shorten it (Burton & Owen 2008a).
